IO-FLASHER PRO – STM8

❖ Standard Programming Connector: – Standard 4-Pin SWIM connector
compatible with STMicroelectronics STM8 Eval board programming
connectors.
❖ Offline Mode: – Stand-alone SWIM programmer (Once set up, Flasher
can be controlled without the use of PC program). Programming starts
with simply button press.
❖ Online Mode: – Programming can be done directly from IO-FLASHER
GUI.
❖ Limit Counter: – Limit counter can set to stop offline programming after
counter reached.
❖ Serial Number Programming: – Any serial number can be programmed
to target MCU with automatic incrementing.
❖ Password protection: – You can protect you programmer with a
password to protect it from erase or rewriting. This will also prevent the
Limit counter status.

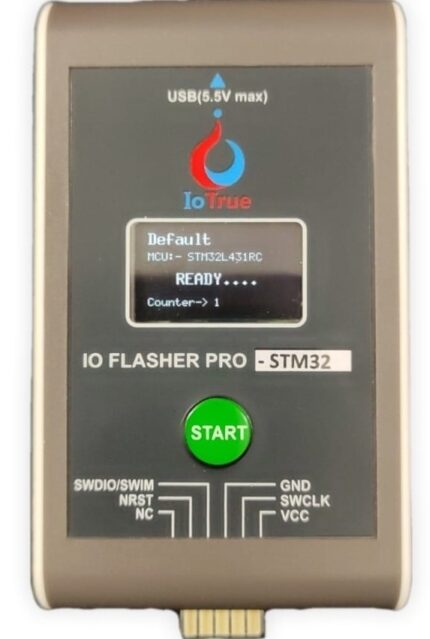

❖ LCD Display: – IO-Flasher PRO– STM8 has interactive LCD Display
❖ Program Menu: – It stores all project settings from GUI to work
independently without GUI. This Menu shows all settings done from GUI.
❖ Interactive programming: – LCD display Programming status, Number
of chips programmed. Error codes and meaning on that error code.
❖ Dual Mode: – While IO-FLASHER is configured as offline mode. It’s can be still used in online mode
for same or different firmware code.
❖ Programmable Power Output: – No power supply required, Powered through USB. Target board can
be power from IO-FLATHER. Output voltage can be adjusted from 0 Volt to ~5Volt depending on
selected target device (up to 200mA to target with overload protection).
❖ Target Power Sensing: – If target is self-powered or powered from IO-FLASHER, then it can be
measured by the IO-FLASHER.
❖ In-built Protection: – All external port protected with ESD, Short circuit and over current. Isolation is
available in Isolated version of IO-FLASHER (e.g. IO-FLASHER -STM8/ISOL)
❖ Programming Options: – Have many programming options to program Flash, EEPROM, Option
memory with auto lock feature.
❖ Supported devices: – Support for all STM8 devices
o STM8S, STM8L, STM8AF, STM8AL
❖ IO-FLASHER GUI: – Highly professional GUI with simple and user-friendly interface. Visit
www.iotrue.com to download GUI for free.
